Brick Ledge Panel

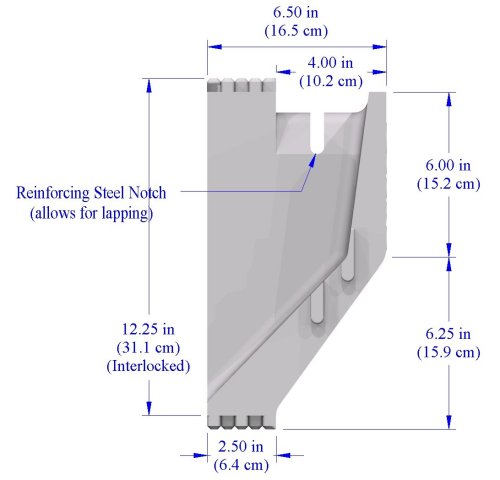

Typical Brick Ledge Panel Dimension(s)

Length 48.0" x Width 6.5" x Height 12.25" (interlocked)
(Length 122 cm x Width 16.51 cm x Height 31.12 cm)

Note: part dimensions may vary slightly due to EPS material shrinkage (100% recyclable)

Concrete Projection

4" (10.2 cm) (from face of wall)

Concrete Core Size

4" (10.2 cm) / 5" (12.7 cm) / 6" (15.2 cm) / 8" (20.3 cm) / 10" (25.4 cm) / 12" (30.5 cm)

Overall Wall Width (1 Brick Ledge Panel)

13" (33.0 cm) / 14" (35.6 cm) / 15" (38.1 cm) / 17" (43.1 cm) / 19" (48.3 cm) / 21" (53.3 cm)

Overall Wall Width (2 Brick Ledge Panels)

17" (43.1 cm) / 18" (45.7 cm) / 19" (48.3 cm) / 21" (53.3 cm) / 23" (58.4 cm) / 25" (63.5 cm)

Integra Foam Panel Material

Flame Retardant Type 2, Expanded Polystyrene (EPS), Density = 1.5 lb/ft³ (pcf) (24.1 kg/m³)

Integra Plastic Insert(s) Material

High Impact Polystyrene (HIPS) (recycled material)

Unique Panel Features

Interlocking tongue and grooves on panel ends; can be placed anywhere in the wall(s) and at different elevation(s); interlocks consecutive row(s) on top; incorporates rebar notch

Interlocking Design

Unique, patented friction and mechanical interlocks.

Design Principle

Insulated, monolithic structural concrete ledger (brick/floor).

Exterior Surface Area

4.08 ft² (0.38 m²) (interlocked)

Concrete Required per Brick Ledge Panel

0.0286 yd³ (0.022 m³) per panel

Qtys / Area / Meters per Bundle

8 Brick Ledge Panels / 32.64 ft² (3.03 m²) (one side of wall)

Packaging

Poly-wrapped

Bundle Weight

19 lbs (8.6 kg)/bundle

Bundle Size

25.0" (63.5 cm) wide x 49.0" (124.46 cm) long x 26.5" (67.3 cm) high
