Size: 4″ (10.2 cm), 6″ (15.2 cm) & 8″ (20.3 cm)

Bundle of 30 pieces.

THE INTEGRASPEC DIFFERENCE

IntegraSpec is the original bi‑directional, reversible ICF building system with no top, bottom, left, or right forms. Unlike other ICFs, IntegraSpec® is a patented independent panel form system—not a rigid block—with many advantages such as substantial reductions in inventory, handling, transport, and waste. IntegraSpec is easier and faster to assemble, pour, and keep straight due to its unique, patented interlocking, reversible, independent technology.

INTEGRAHEADERS

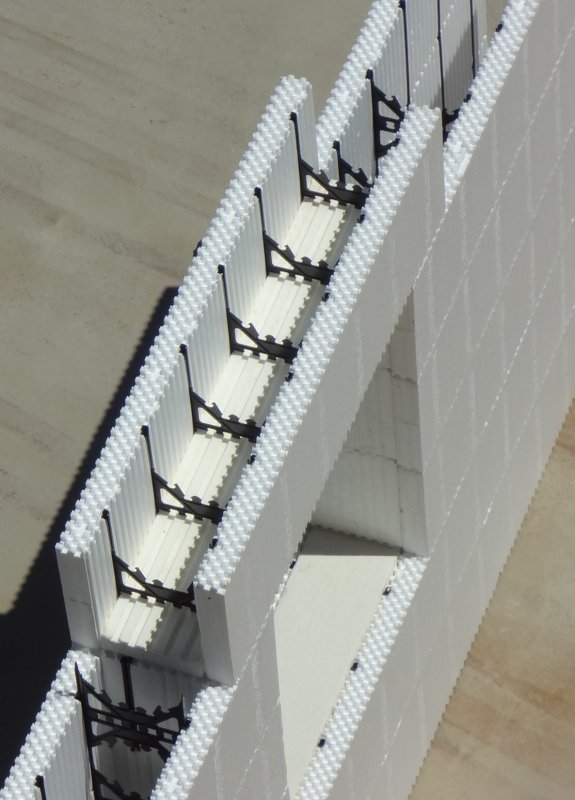

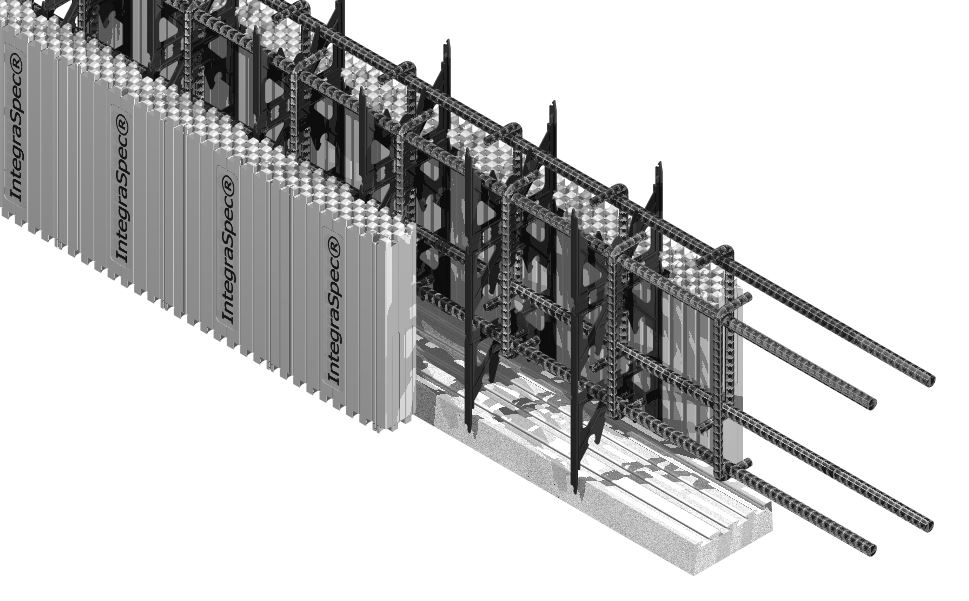

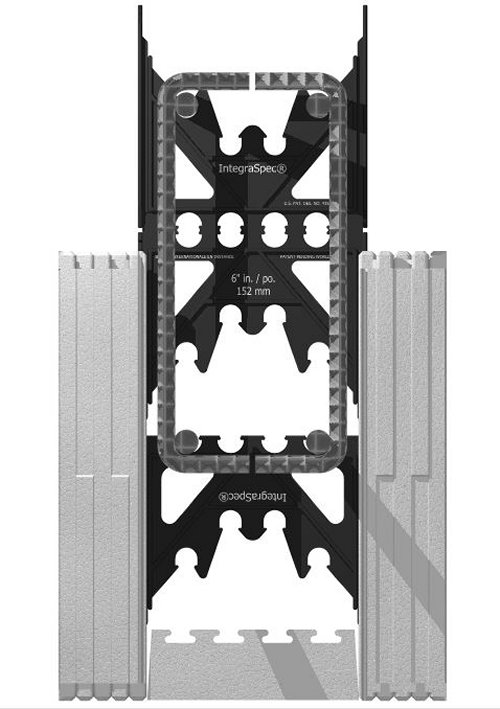

IntegraHeaders forms and provides insulation at the top and bottom of rough openings—such as windows and doors. Incorporated dovetailed grooves provide permanent mechanical bonding with the concrete.

Specifications

IntegraHeaders dimensions

4″ (10.2 cm) wide × 1.5″ (3.8 cm) thick × 8′ (244 cm) long
5″ (12.7 cm) wide × 1.5″ (3.8 cm) thick × 8′ (244 cm) long
6″ (15.2 cm) wide × 1.5″ (3.8 cm) thick × 8′ (244 cm) long
8″ (20.3 cm) wide × 1.5″ (3.8 cm) thick × 8′ (244 cm) long
10″ (25.4 cm) wide × 1.5″ (3.8 cm) thick × 8′ (244 cm) long
12″ (30.5 cm) wide × 1.5″ (3.8 cm) thick × 8′ (244 cm) long.

IntegraHeader material

Flame‑retardant Type 2 expanded polystyrene (EPS); density 1.5 lb/ft³ (24.1 kg/m³).

Incorporated dovetail

Provides excellent concrete bonding with EPS.

IntegraHeader 4″ (10.2 cm) details

Quantity: 30 pieces
Packaging: Shrink wrap
Approx. box weight: 50 lb (22.7 kg)
Bundle size: 96″ × 15″ × 12″
(244 cm × 38.1 cm × 30.5 cm)

IntegraHeader 5″ (12.7 cm) details

Quantity: 30 pieces
Packaging: Shrink wrap
Approx. box weight: 53 lb (24.0 kg)
Bundle size: 96″ × 15″ × 15″
(244 cm × 38.1 cm × 38.1 cm)

IntegraHeader 6″ (15.2 cm) details

Quantity: 30 pieces
Packaging: Shrink wrap
Approx. box weight: 56 lb (25.4 kg)
Bundle size: 96″ × 15″ × 17″
(244 cm × 38.1 cm × 43.2 cm)

IntegraHeader 8″ (20.3 cm) details

Quantity: 30 pieces
Packaging: Shrink wrap
Approx. box weight: 62 lb (28.1 kg)
Bundle size: 96″ × 15″ × 24″
(244 cm × 38.1 cm × 61.0 cm)

The Benefits of IntegraSpec®

Energy efficiency iconENERGY EFFICIENCY

Owners enjoy energy savings up to 100% (net zero).

Structural stability iconSTRUCTURAL STABILITY

Withstands winds in excess of 250 mph in hurricane & tornado areas.

Quiet iconQUIET

STC rating of 50+ (or greater with other sound reduction materials).

Air quality iconIMPROVED AIR QUALITY

No VOCs; does not support mould or mildew growth.

Moisture protection iconMOISTURE PROTECTION

Helps eliminate moisture and condensation.

Fire protection iconFIRE PROTECTION

Provides several hours of fire protection for superior safety.

Fast and reliable iconFAST & RELIABLE

Completes six construction steps in one application.

Eco-friendly iconECO‑FRIENDLY

100% recyclable; supports net‑zero and LEED/Passivhaus goals.

Reduces waste iconREDUCES WASTE

Reversible panels reduce material waste on site.
