Pack quantities: 216 (4–8″) or 108 (10–12″) per box.

THE INTEGRASPEC DIFFERENCE

IntegraSpec is the original bi-directional and reversible ICF building system with no top, bottom, left or right forms. Unlike other ICFs, IntegraSpec® is a patented independent panel system—not a rigid block. Walls are easier to assemble and cut, retain concrete, and stay straight thanks to the unique interlocking, reversible, and independent design.

INTEGRASPEC SPACERS / WEBS

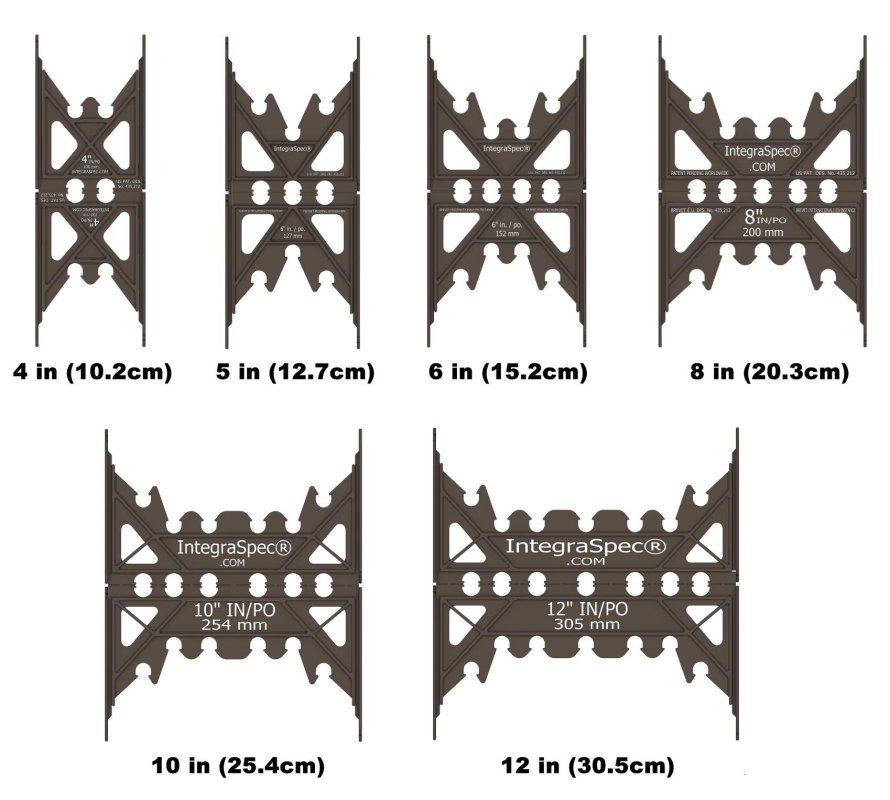

Concrete core spacers available: 4″ (102 mm), 5″ (127 mm), 6″ (152 mm), 8″ (203 mm), 10″ (254 mm) and 12″ (305 mm). Spacers lock on top of each other during wall assembly; they can also be broken into two equal halves to accommodate wall heights, openings and lintels, and to increase rebar placement opportunities in the walls (and lintels). Spacers may also be joined using an Integra H Clip for wider concrete wall requirements in commercial wall applications, footings, pilasters and columns.

Specifications

IntegraSpacers plastic material

High‑impact polystyrene (HIPS) (recycled material).

Unique spacer features

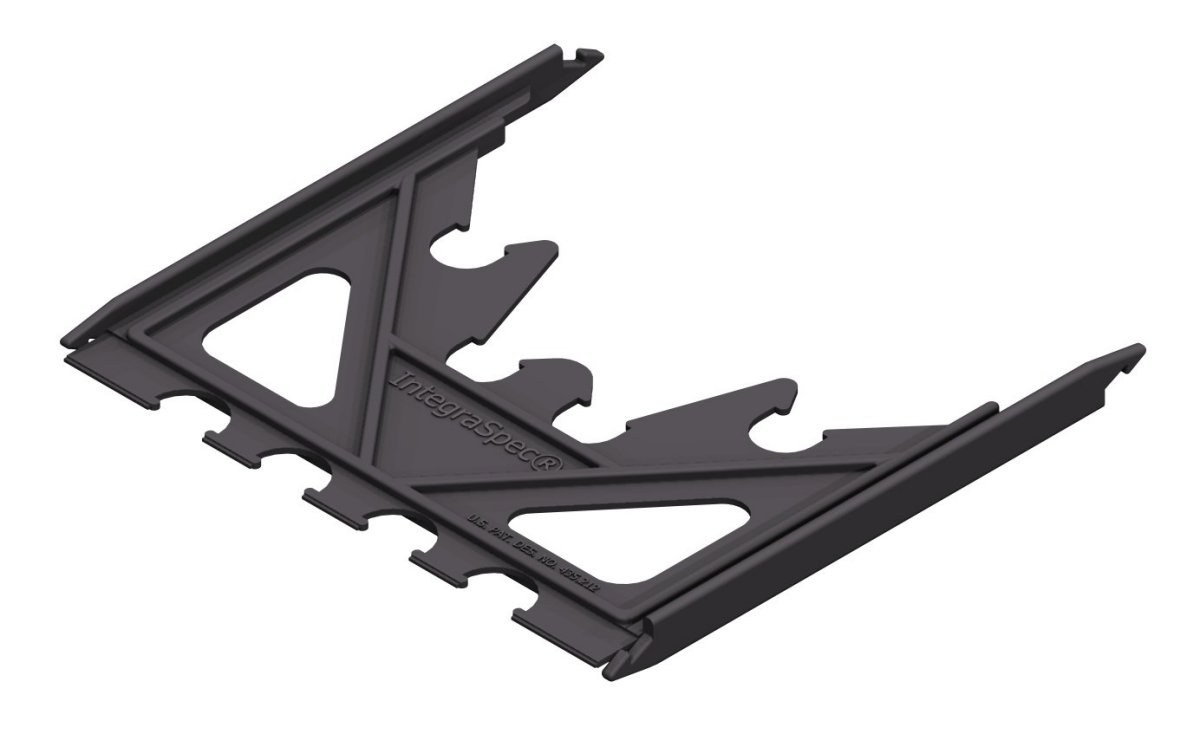

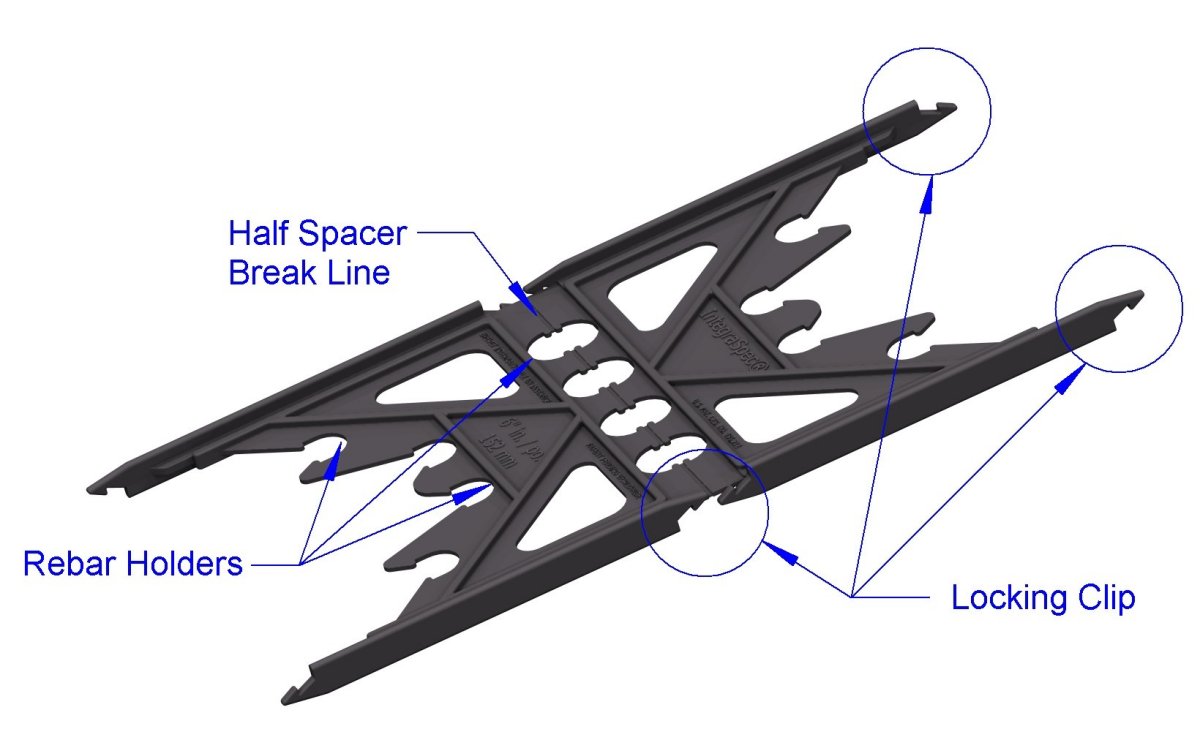

Bi‑directional and reversible (no top, bottom, left or right). Incorporates multiple rebar holders. Breakable into two equal halves; can be cut for custom applications.

Interlocking design

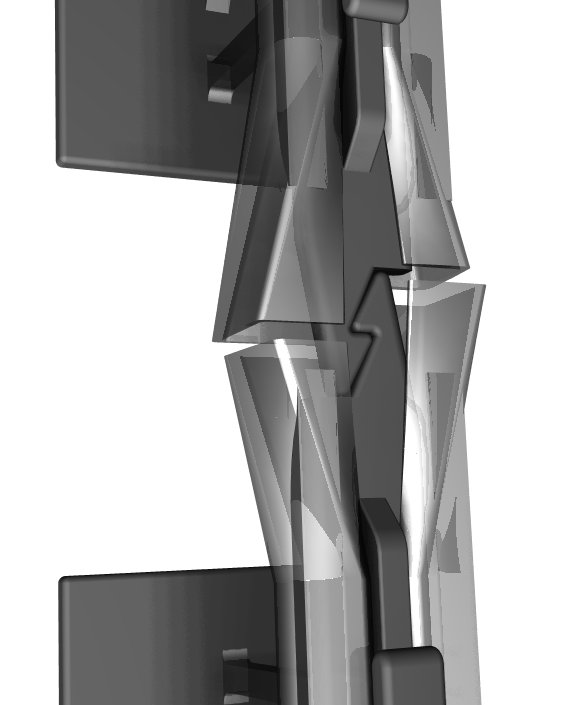

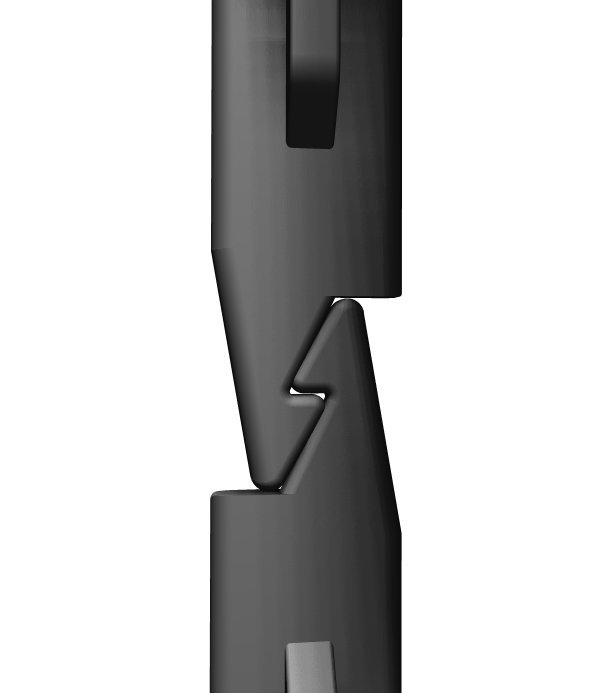

Slides into panel inserts and interlocks one on top of another.

Typical fastening studs/strapping

Vertical 1⅝″ (4.1 cm) wide.

4″ spacers details

Size: 4″ (10.2 cm).
Packaging: Box.
Quantity: 216 per box.
Approx. box weight: 35 lb (16 kg).
Bundle size: 20″ × 13.5″ × 17.5″ (51 cm × 34 cm × 45 cm).

5″ spacers details

Size: 5″ (12.7 cm).
Packaging: Box.
Quantity: 216 per box.
Approx. box weight: 38 lb (17.2 kg).
Bundle size: 25″ × 11.5″ × 17.5″ (64 cm × 29 cm × 45 cm).

6″ spacers details

Size: 6″ (15.2 cm).
Packaging: Box.
Quantity: 216 per box.
Approx. box weight: 41 lb (18.6 kg).
Bundle size: 25″ × 13.5″ × 17.5″ (64 cm × 34 cm × 45 cm).

8″ spacers details

Size: 8″ (20.3 cm).
Packaging: Box.
Quantity: 216 per box.
Approx. box weight: 48 lb (21.8 kg).
Bundle size: 35″ × 13.5″ × 17.5″ (89 cm × 34 cm × 45 cm).

10″ spacers details

Size: 10″ (25.4 cm).
Packaging: Box.
Quantity: 108 per box.
Approx. box weight: 27 lb (12.3 kg).
Bundle size: 22″ × 13.5″ × 17.5″ (56 cm × 34 cm × 45 cm).

12″ spacers details

Size: 12″ (30.5 cm).
Packaging: Box.
Quantity: 108 per box.
Approx. box weight: 38 lb (17 kg).
Bundle size: 25″ × 13.5″ × 17.5″ (64 cm × 34 cm × 45 cm).

The Benefits of IntegraSpec®

Energy efficiency iconENERGY EFFICIENCY

Owners enjoy energy savings up to 100% (net zero).

Structural stability iconSTRUCTURAL STABILITY

Withstands winds in excess of 250 mph in hurricane & tornado areas.

Quiet iconQUIET

STC rating of 50+ (or greater with other sound reduction materials).

Air quality iconIMPROVED AIR QUALITY

No VOCs; does not support mould or mildew growth.

Moisture protection iconMOISTURE PROTECTION

Helps eliminate moisture and condensation.

Fire protection iconFIRE PROTECTION

Provides several hours of fire protection for superior safety.

Fast and reliable iconFAST & RELIABLE

Completes six construction steps in one application.

Eco-friendly iconECO‑FRIENDLY

100% recyclable; supports net‑zero and LEED/Passivhaus goals.

Reduces waste iconREDUCES WASTE

Reversible panels reduce material waste on site.
