Standard ICF Panels

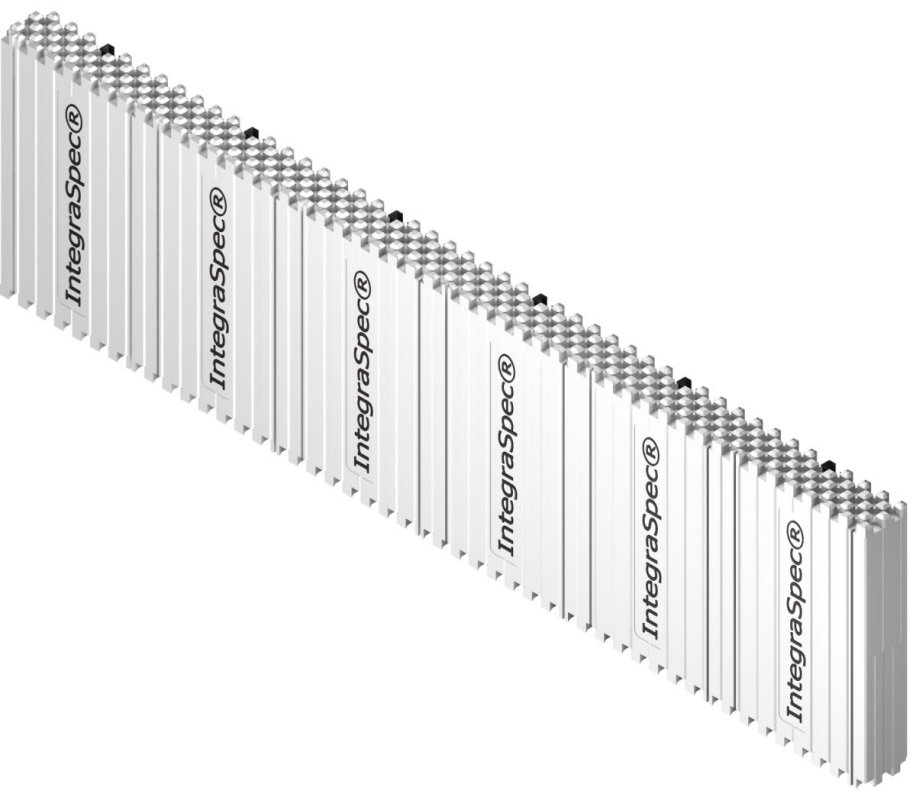

Standard Panels

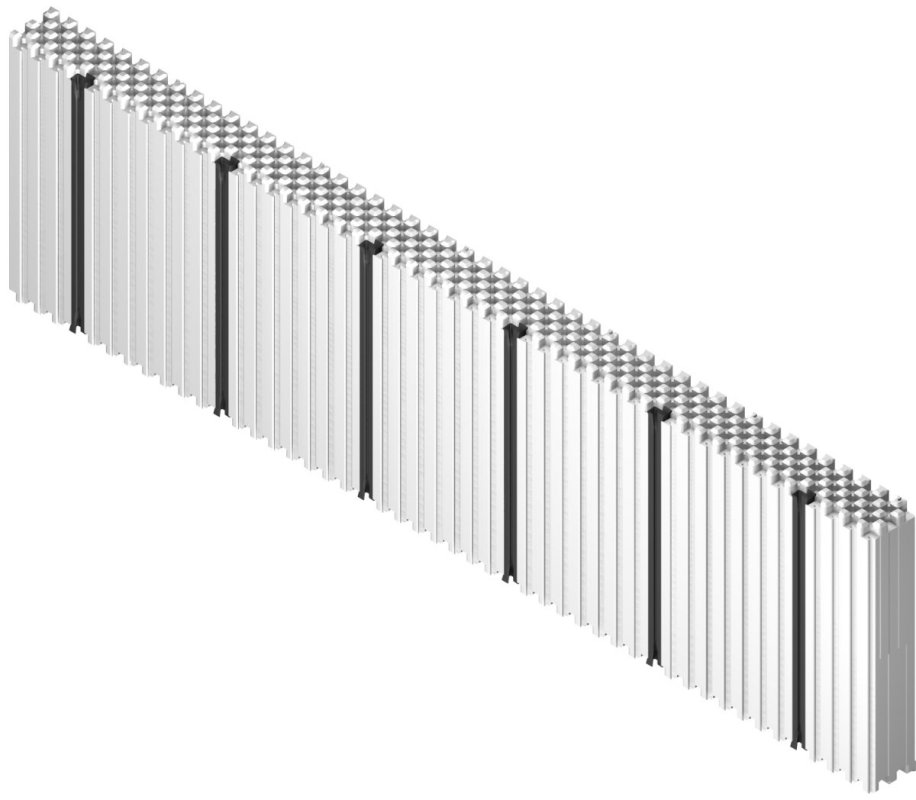

Standard Panels

Bundle of 18 panels

covers 36.72 sq ft (3.41 m²)

THE INTEGRASPEC DIFFERENCE

IntegraSpec is the original bi‑directional, reversible, and perpendicular‑interlocking ICF building system with no top, bottom, left, or right forms. Unlike other ICFs, IntegraSpec’s independent panels allow you to form walls, footings, and columns of any shape and size without being handcuffed like an ICF block, which installs like a masonry product. The IntegraSpec High‑Impact Polystyrene (HIPS) plastic inserts are bonded/fused within the IntegraSpec Expanded Polystyrene (EPS) foam panels, making IntegraSpec one of the strongest ICF systems on the market, with one of the fastest pouring rates using high‑slump or self‑levelling concrete to eliminate cold joints, voids, honeycombing, and crooked or wavy walls.

STANDARD PANELS

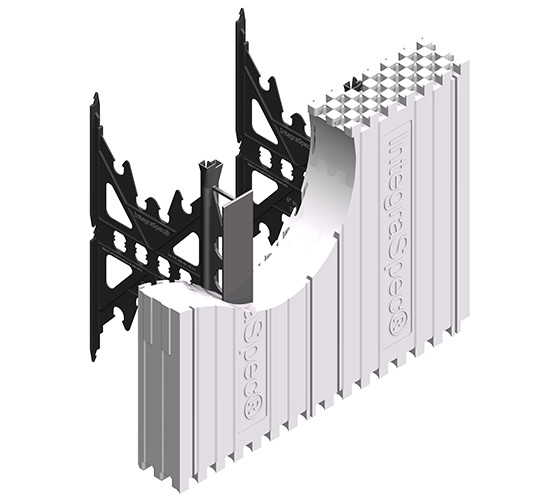

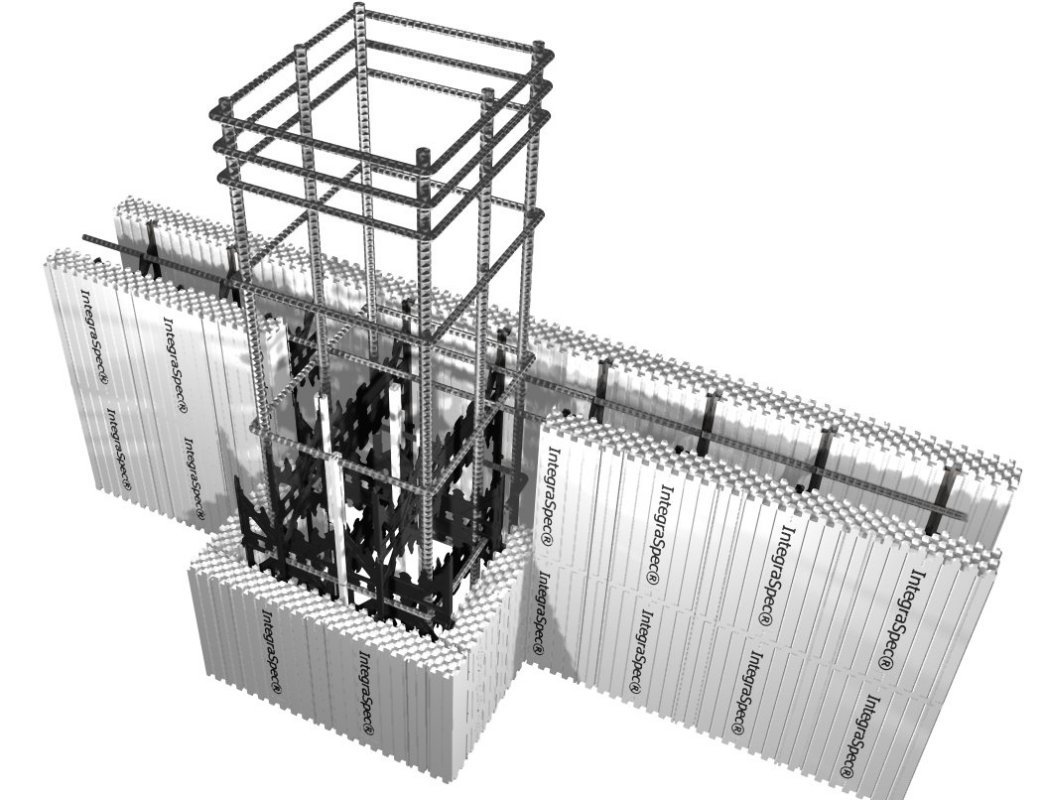

IntegraSpec’s STANDARD PANELS are THE ULTIMATE and the only UNIVERSAL, INDEPENDENT PANELS with NO TOP, BOTTOM, LEFT, OR RIGHT SIDE. Because they interlock in any configuration, cut panels can also be used in the wall assembly, creating very little to no waste. Standard panels are the same unit for all concrete core sizes and for building walls, columns and footings. They may also be mitered to form corners and curved walls. Each panel provides embedded vertical fastening/studs every 8 in (203 mm) on center. Easy slide‑in webs/spacers (inside the panel’s plastic inserts/studs) also allow quick installation of forms around rebar (seismic & multi‑level design) and steel columns without having to drop forms from a ladder, scaffold, or boom. This also allows one side of the wall with webs/spacers to be constructed for easy placement of complex rebar and stirrups. Independent panels can also be assembled and positioned differently on the opposite side of the wall—panels can be up or down, left or right relative to each other.

Specifications

Typical Panel Dimension(s)

Length 48.0" x Width 2.5" x Height 12.25" (interlocked)
(Length 122 cm x Width 6.35 cm x Height 31.12 cm)

Note: part dimensions may vary slightly due to EPS material shrinkage (100% recyclable)

Standard Concrete Cavity / Core

4'' (10,2 cm) / 5'' (12,7 cm) / 6'' (15,2 cm) / 8'' (20,3 cm) / 10'' (25,4 cm) / 12'' (30,5 cm)

Total Wall Width (2 Integra Panels + Concrete Core)

9'' (22,9 cm) / 10'' (25,4 cm) / 11'' (27,9 cm) / 13'' (33,0 cm) / 15'' (38,1 cm) / 17'' (43,2 cm)

Integra Foam panel(s) Material

Flame Retardant Type 2, Expanded Polystyrene (EPS), Density = 1.5 pounds/cubic/feet (pcf) (24.14 kg/m³)

Integra Plastic Insert(s) Material

High Impact Polystyrene (HIPS) (100% recycled material)

Unique and Special Interlocking Features of the Panels

Patented bi-directional and/or reversible (No top, bottom, left, or right hand side). Enables faster and more accurate installation and eliminates waste.

Interlocking Design

Unique special patented friction and mechanical interlocks

Typical Fastening Studs / Strapping

Vertical 1⅝" (4.13 cm) wide located every 8" (20 cm) OC

Exterior Surface Area

4.08 ft² (0.38 m²) (interlocked)

Concrete Volume 4" (10.16 cm) Wall

0.05 yd³ (0.039 m³) / Standard Form Unit

Concrete Volume 5" (12.70 cm) Wall

0.06 yd³ (0.048 m³) / Standard Form Unit

Concrete Volume 6" (15.24 cm) Wall

0.08 yd³ (0.058 m³) / Standard Form Unit

Concrete Volume 8" (20.32 cm) Wall

0.10 yd³ (0.077 m³) / Standard Form Unit

Concrete Volume 10" (25.40 cm) Wall

0.12 yd³ (0.094 m³) / Standard Form Unit

Concrete Volume 12" (30.48 cm) Wall

0.151 yd³ (0.11 m³) / Standard Form Unit

Qtys / Area / Meters per Bundle

18 Standard Panels (9 Blocks)
36.72 ft² (3.41 m²) of wall area (incl. both sides of wall)

The Benefits of IntegraSpec®

Energy efficiency iconENERGY EFFICIENCY

Owners enjoy energy savings up to 100% (net zero).

Structural stability iconSTRUCTURAL STABILITY

Withstands winds in excess of 250 mph in hurricane & tornado areas.

Quiet iconQUIET

STC rating of 50+ (or greater with other sound reduction materials).

Air quality iconIMPROVED AIR QUALITY

No VOCs; does not support mould or mildew growth.

Moisture protection iconMOISTURE PROTECTION

Helps eliminate moisture and condensation.

Fire protection iconFIRE PROTECTION

Provides several hours of fire protection for superior safety.

Fast and reliable iconFAST & RELIABLE

Completes six construction steps in one application.

Eco-friendly iconECO‑FRIENDLY

100% recyclable; supports net‑zero and LEED/Passivhaus goals.

Reduces waste iconREDUCES WASTE

Reversible panels reduce material waste on site.
